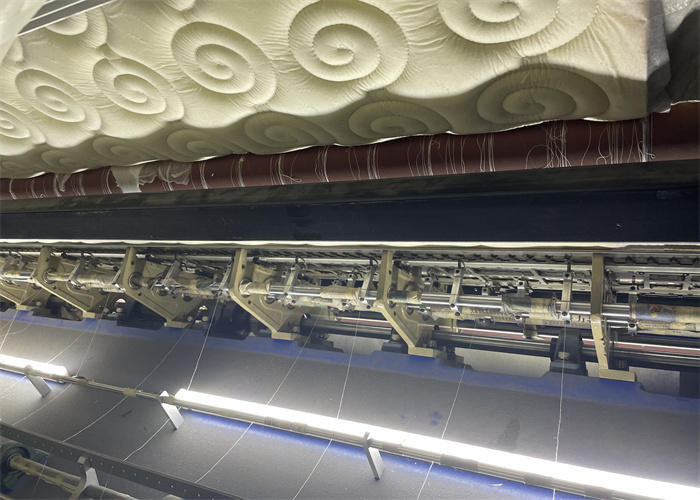

94 inches Computerized Quilting Machine
Application:
It is widely used for mattress panel,mattress pads,bedspreads,comforters,bedding,blankets,seats covers,decoration and more.
Quilting machine Features:
1. New aluminum alloy needle bar and press plate are controlled by a double-swinging device without cam avoiding lubrication and dirtying of material.
2. 360°Multi-span and independent patterns, automatic thread trimming function.
3. Self-developed “Quilting System”, also supports quilting embroidering mainstream DST format file, easy to operation.
4. Computer host adopt the most advanced embedded operating system and self-developed motion control chip, Fast response speed, long service life, good stability
5. Spindle driven by servo motor, it is able to change speed and positive inversion, cooperate with software to complete the slice thread trimming function
6. Adopt international advanced slice thread trimming function; effectively reduce the probability thread jump, more stable.
7. The spindle, X, Y axis all adopt high-power servo motor
8. Strong functions of pattern-combining and multi-span (Tack & Jump) quilting to enable you to quilt different patterns in each row in the mattresses of different sizes
| Model | YXN-94-3D |
| Overall(Lx WxH) | 5400X1650X2100mm |
| Over all weight | 4500kg |
| Spindle speed | 500-1200rpm |
| Output | 60-250 m/h |
| Stitch | 2-8mm |
| Model of needle | 24/180,23/160,22/140,21/130 |
| Space between needle rows | (50.8,76.2,127mm)5'',(76.2,76.2,152.4mm)6'' |
| Space between needles | 1 inch |
| Stroke | 30mm |
| Quilt width | 2450mm |
| Sewing thickness | ≤8cm |
| Rated voltage | 380V/220V 50Hz/60Hz |
| Power | 8KW |
