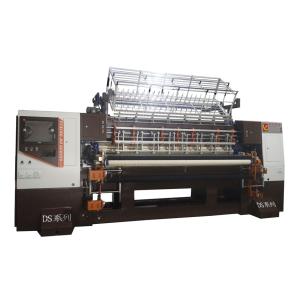

96 Inches Multi-needle Lock Stitch (Shuttle) Quilting Machine For Blanket
The Multi-Needle Quilting Machine is a revolutionary quilting equipment that offers high-speed production and unparalleled safety features. It is equipped with an automatic lubrication system that ensures optimal performance. The control panel features a digital display and controls that provide convenient operation of the machine. Moreover, the machine is equipped with multiple safety features that guarantee safe and efficient operation. The Multi-Needle Quilting Machine is the perfect solution for high-volume production, allowing for quick and efficient quilting. It is the perfect choice for quilting professionals looking for a reliable, high-speed quilting machine.
Appropriate to: comforter, quilts, bag, jackets, sleeping-bag, nightgown, and house adornments.
Specification:
| Product Name | High Speed Computerized Lock Stitch (Shuttle) Multi-needle Quilting Machine |
| Model | YXS-96-3DS |
| Size(L*W*H) | 4730*1750*1700mm |
| Weight | 6000kg |
| Quilting width | 2450mm |
| Needle bar space | 3DS 3''+3''(152.4mm) |
| Quilting thickness | ≤50mm |
| Rolling speed | 500-1400r/min |
| Output | 0-260m/hour |
| Needle type | #16,#19 |
| X-axis movement | 254mm |
| Needle space | 25.4mm |
| Stitch | 2-8mm |
| Rated voltage(AC) | 380V/50HZ,/220V/60HZ |
| Power | 7.5KW |
Function
1. Pattern editing is easy to learn.
2. Have the ringing notice when start machine.
3. The infrared system, make your operation more safe.
4. Principal axis uses the frequency conversion device.
5. Saddling rack and rollers are driven by servo equipment.
6. Adopt the advanced computer and mechanistic technology.
7. Can 360° random quilting and limitless multi-span and independent quilting.
8. Compensation function, an effective solution for looping pattern with thick material.
9. Needle bar frame structure is more firm and durable so that the cost of maintenance is cheaper.
10. Adjust speed by the computer system, the speed can reach 1400r/min, the stitch can be set between 2-8 mm.
11. Needle bars running with needle bar frame, do not need to add extra lube, avoid the materials be soiled by lube.
12. Advanced and practical testing upper thread broken techniques, the machine is auto-stop when the thread is broken.
Pattern:
