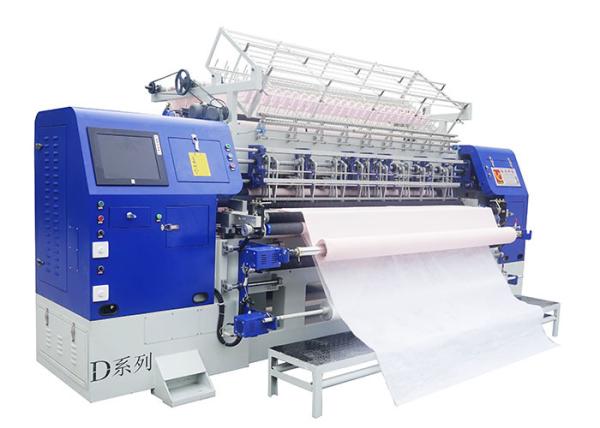

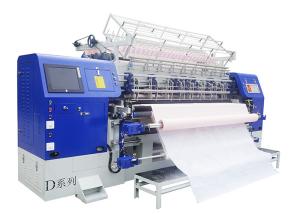

1200RPM Computerized Shuttle Multi-Needle Jacket Quilting Machine
Computer jacket quilting machine Function:
1. Adopt the advanced computer and mechanistic technology.
2. Needle bar running with needle bar frame,no need to add extra lube, avoid the materials be soiled by lube.
3. Needle bar frame structure is more firm and durable,so that the cost of maintenance is cheaper.
4. Saddling rack and roller are driven by servo equipment.
5. Principal axis uses the frequency conversion device.
6. Adjust speed by computer, the speed can reach 1200r/min,the stitch can be set between 2mm-6mm.
7. 360°random quilting and limitless multi-span and independent quilting.
8. Compensation function,an effective solution for looping pattern with thick material.
9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10. The infrared system ,make your operate more safe.
11. Pattern editing is easy to learn.
12. Ringing notice when start machine.
| Model | YXS-82-2/3D |
| Dimension(L×W×H) | 4425*1750*1700 MM |
| Quantity of needle bar | 2/ 3 |
| Quilting width | 2100 MM |
| Space between needle rows | 76.2(3')/152.4(3'+3') MM |
| Space between needles | 25.4 MM |
| X-axis movement dispacent | 254 MM |
| Thickness of quilting | ≤50 MM |
| Stitch length | 2~8 MM |
| Speed of operation(m/H) | 10~240 |
| Model of needle | 16#,19# |
| Speed of main shaft(RPM) | 500~1200 |
| Total power required | 5.5KW |
| Voltage | 380V/50HZ; 220V/60HZ |
| Gross weight | 5200kg |
Compare with the C series Lock stitch quilting machine:
-
Bearing with lock core, stable and not easy to heat
-
Permanent magnet inductor, less loss current, more stable pattern
-
Using synchronous belt drive, uniform rotation speed
-
Encoder program, machine information transmission more accurate
-
Adopt aviation aluminum strip, lighter material, faster machine speed
-
Angle of fuselage for easy shuttle change
-
Cut-off auto-stop infrared data direct to the computer, the reaction speed is faster
- Big Four Volt Power, Faster Machine Running, up to 1200r/min
Appropriate to: comforter, quilts, bag, sleeping-bag, nightgown, and house adornments.
