Commercial Computerized 2 M Sewing Width Quilting Machine For Jacket
Computerized Quilting Machine Function:
1. Adopt the advanced computer and mechanistic technology.
2. Needle bars running with needle bar frame, no need to add extra lube, avoid the materials be soiled by lube.
3. Needle bar frame structure is more firm and durable, the cost of maintenance is more cheaper.
4. Saddling racks and rollers are driven by servo equipment.
5. Principal axis uses the frequency conversion device.
6. Adjust speed by computer system, the speed can reach 800RPM,the stitch can be set between 2-6mm.
7. 360°random quilting and limitless multi-span and independent quilting.
8. Compensation function,an effective solution for looping pattern with thick material.
9. Advanced and practical testing upper thread broken techniques,the machine is auto-stop when thread is broken.
10. The infrared system ,make your operate more safe.
11. The pattern editing is easy to learn.
12. Machine have ringing notice when start machine.
| Model | YXS-82-2/3CS |
| Dimension(L×W×H) | 4300*1500*1700 |
| Quantity of needle bar | 2/ 3 |
| Quilting width | 2100 |
| Space between needle rows | 82.2(3')/ 152.4(3'+3') |
| Space between needles | 25.4 |
| X-axis movement dispacent | 204 |
| Thickness of quilting | ≤50 |
| Stitch length | 2~8 |
| Speed of operation(m/H) | 10~210 |
| Model of needle | 16#,19# |
| Speed of main shaft(RPM) | 500~1000 |
| Total power required | 5KW |
| Voltage | 380V/50HZ 220V/60HZ |
| Gross weight | 4500kg |
Appropriate to:jackets, garments, duvets, comforters, quilts, bag, sleeping-bags, nightgown, and house adornments.
Product Tags:
|
|

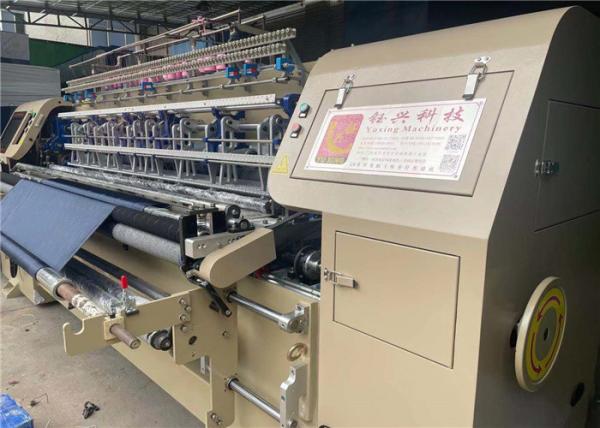

Commercial 1000RPM 2M Computerized Quilting Machine For Jacket Images
|
